3mm aluminium composite panel letters cut with CNC router. Cost-effective for larger letters with bold fonts.
YOUR TEXT HERE

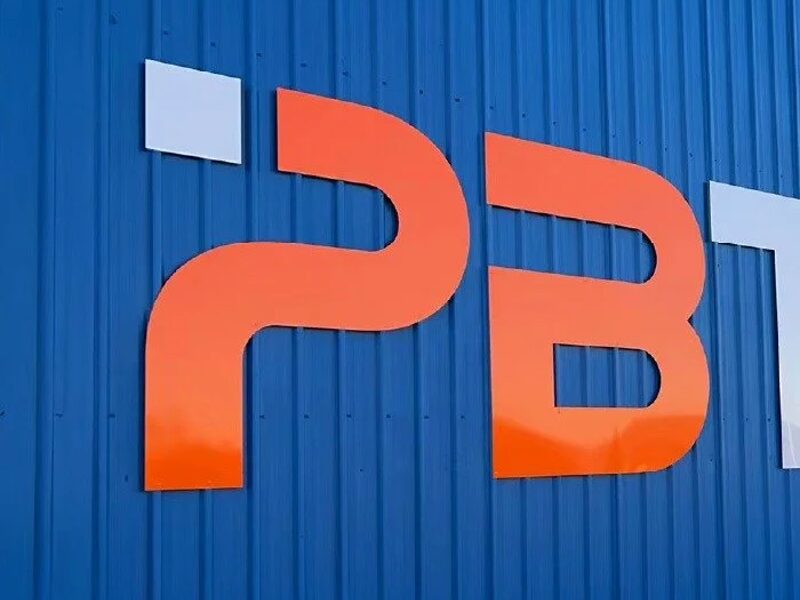

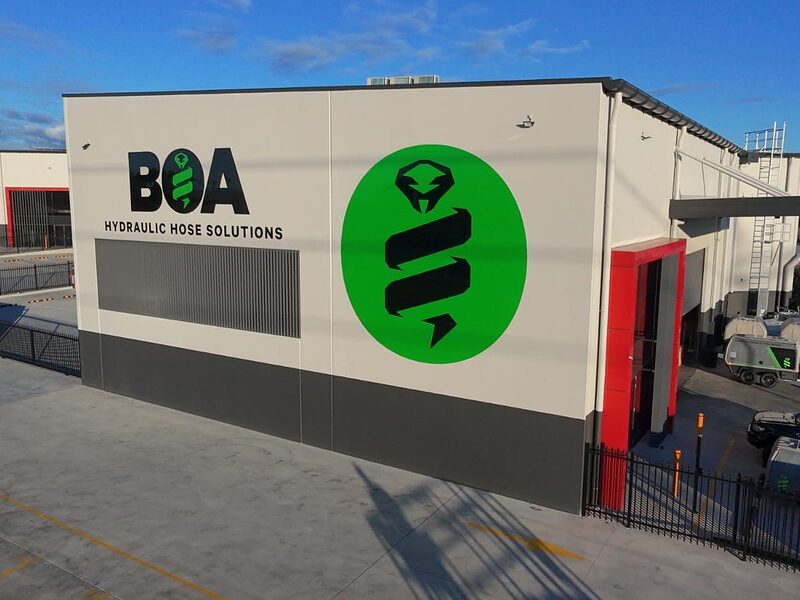

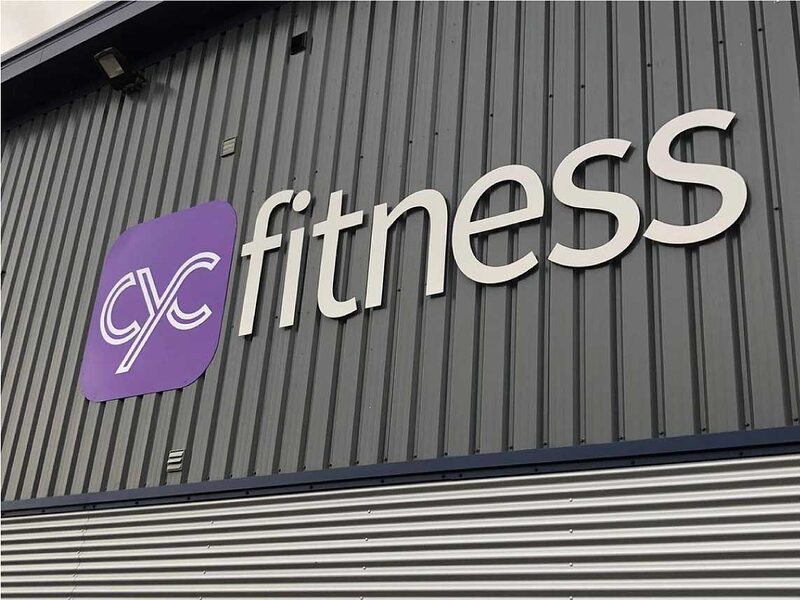

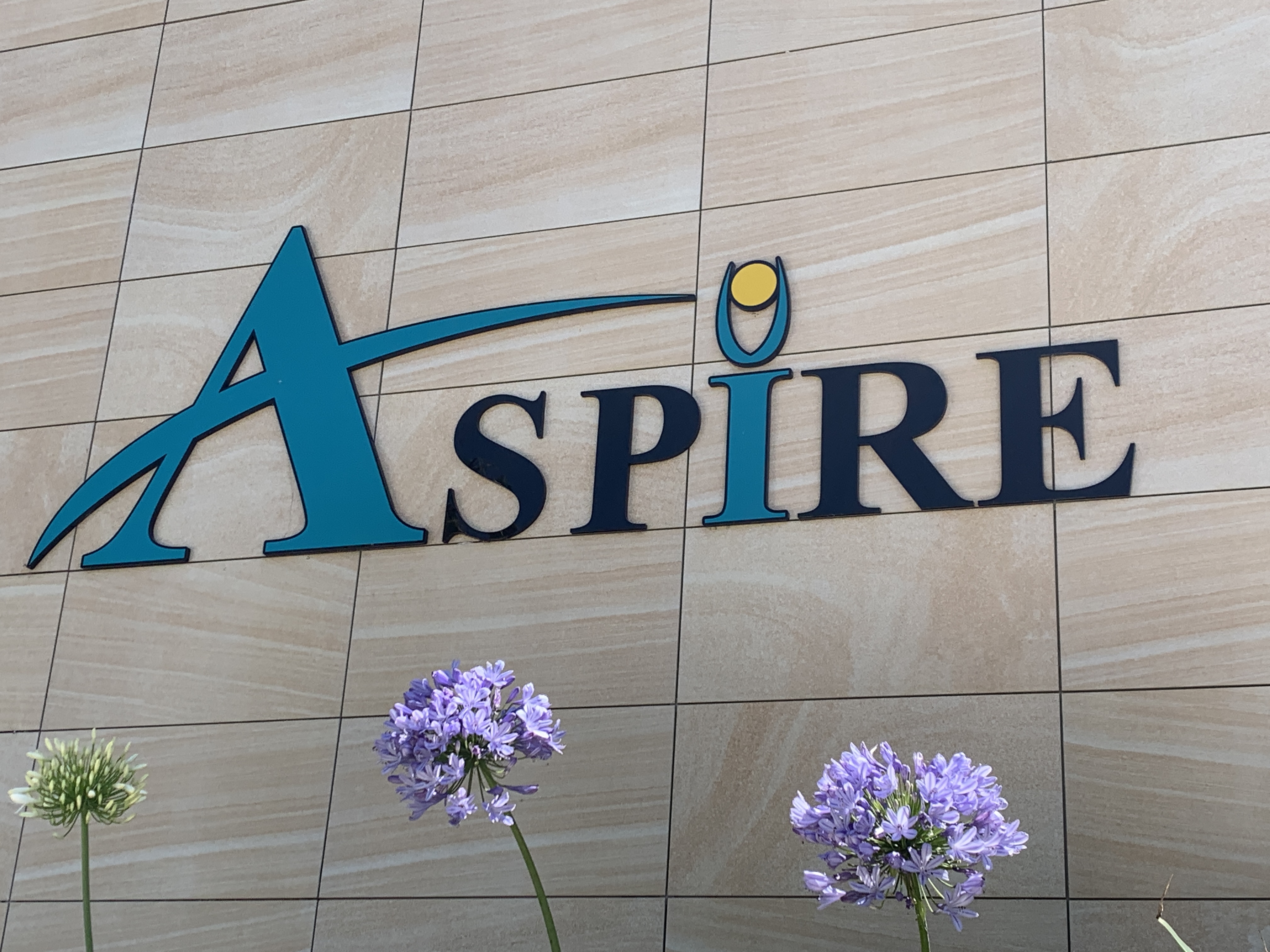

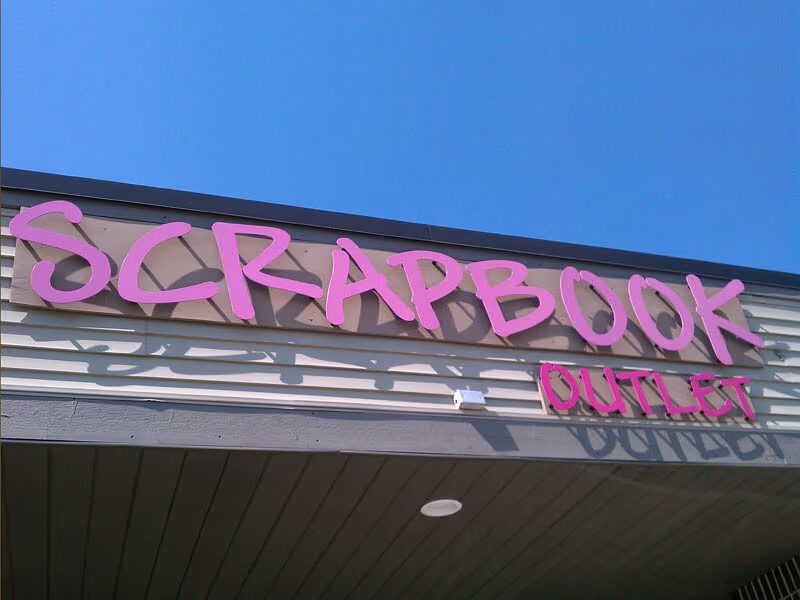

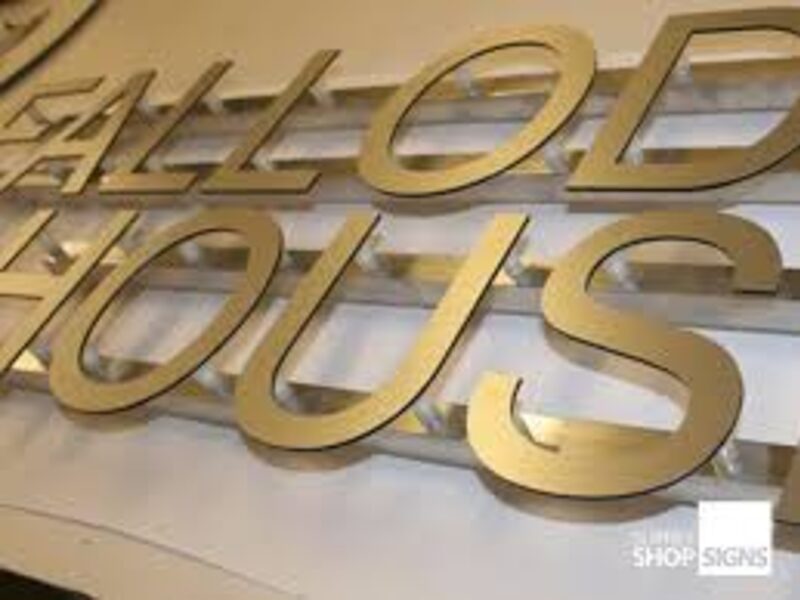

A selection of ACM cut-out letters we've produced for Australian clients.
Custom ACM cut-out letters are the most cost-effective way to deliver bold, dimensional signage for shopfronts, reception walls, building facades and architectural branding. Platinum Signs manufactures ACM letters in-house at our Australian production facility using a precision flatbed CNC router, giving every letter clean, square-cut edges at a price point that undercuts solid aluminium or stainless steel alternatives while still delivering a premium, lasting finish.
Aluminium Composite Material (ACM) — also marketed as Dibond, Alucobond, Signbondor simply composite panel— consists of two thin aluminium face sheets bonded to a solid polyethylene core. The result is a panel that is remarkably rigid and flat, yet significantly lighter than solid metal. Our 3mm ACM is the industry-standard thickness for cut-out letters, delivering the right balance of weight, rigidity and edge presence when mounted with stud pins or VHB tape.
ACM is typically 30–45% cheaper than solid aluminium for the same visual dimension, without compromising outdoor durability.
The polyethylene core keeps weight down, which simplifies installation on plaster, gyprock, timber, concrete, brick or tile substrates.
The pre-finished aluminium face takes custom paint or vinyl overlay exceptionally well — any RAL, Pantone or corporate colour.
5–7 years outdoor lifespan with painted finishes; non-corroding aluminium face tolerates UV, rain, salt spray and temperature swings.
The visible black polyethylene core creates a subtle pinstripe accent that reads as intentional, modern detailing up close.
5–7 business days to dispatch from our Sydney workshop after artwork approval.
ACM letters perform equally well indoors and outdoors, which is why they are the default specification for Australian architects, interior designers and signage project managers working across commercial fit-outs. Typical projects we produce weekly include:
Because ACM is CNC router cut (not laser cut), very fine decorative scripts with hairline strokes can be fragile at smaller sizes. For best results we recommend bold sans-serif fonts or weighted serif fonts with a minimum stroke thickness of approximately 6mm at the letter heights we produce. Popular choices include Helvetica Bold, Montserrat Bold, Avenir Black, Gotham, Futura Bold, Bebas Neue, Bodoni Bold and custom corporate wordmarks. If your logo uses a finer script or weight, consider our solid aluminium letters or acrylic letter cutting— both are laser cut and handle thinner strokes effortlessly.

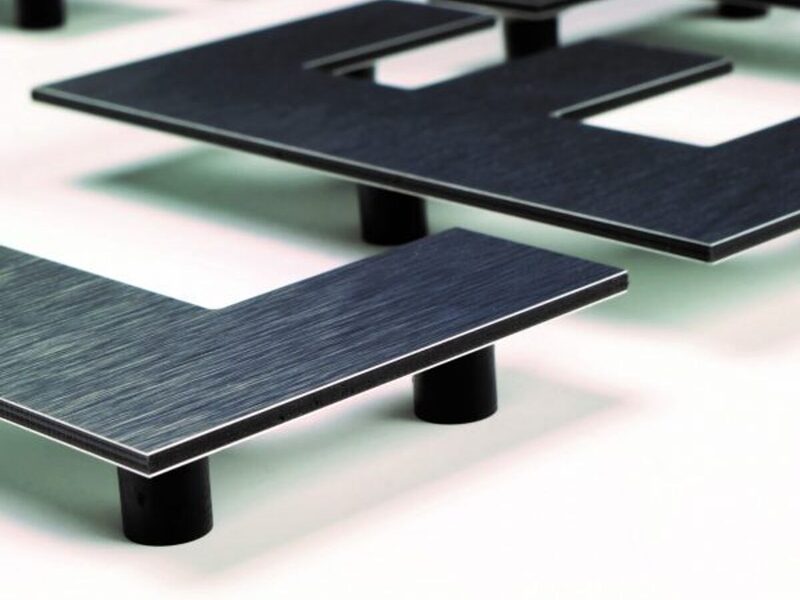

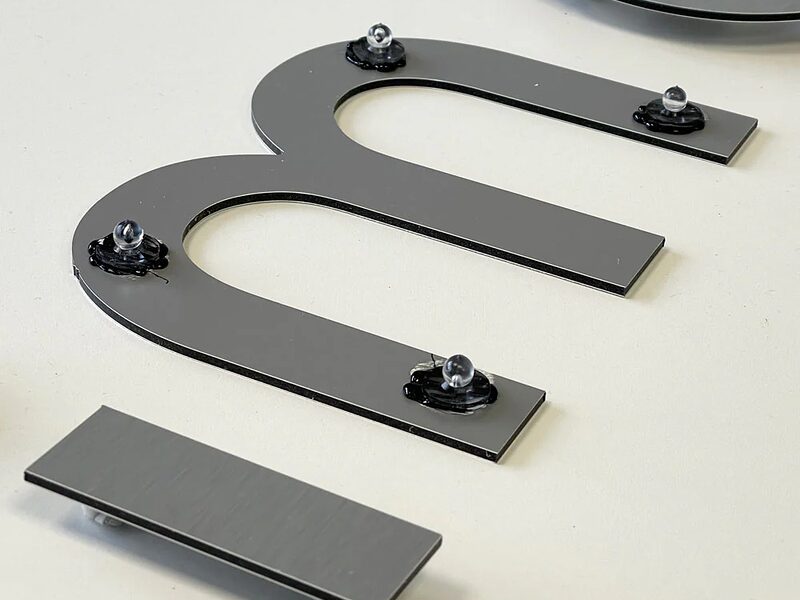

Every ACM letter can be supplied with one of three mounting configurations depending on the substrate and desired look: stud mounting pins for a floating stand-off effect (our most popular choice — creates a subtle shadow line), VHB adhesive tape pre-applied to the rear for flat indoor surfaces, or threaded stand-off rods for raised letters with a more pronounced shadow, ideal for hero feature walls. Our team supplies a mounting template with every order so your installer can locate and drill the fixings accurately on site.
| Material | 3mm Aluminium Composite Panel (Dibond / Alucobond / Signbond equivalent) |
| Cutting method | flatbed CNC router — precision 3-axis |
| Letter height range | 50mm to 1220mm (limited by sheet size) |
| Minimum stroke width | ~6mm recommended for structural integrity |

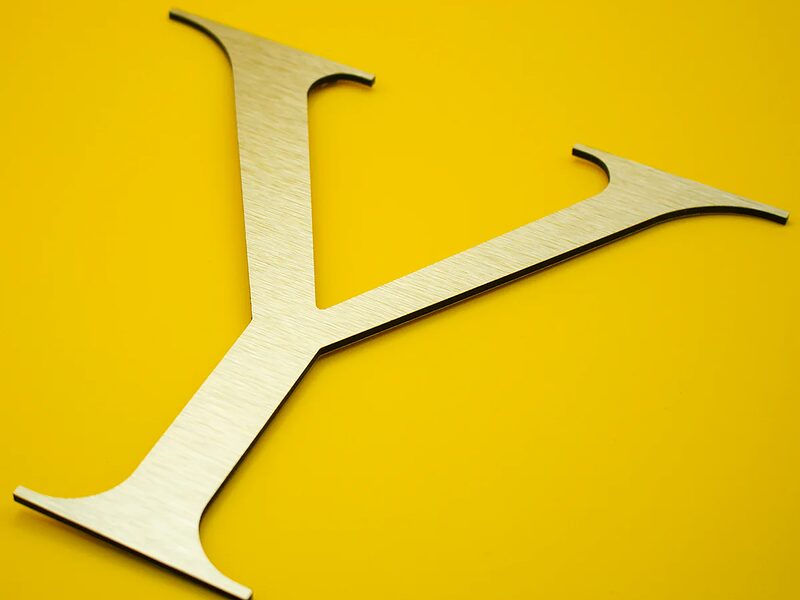

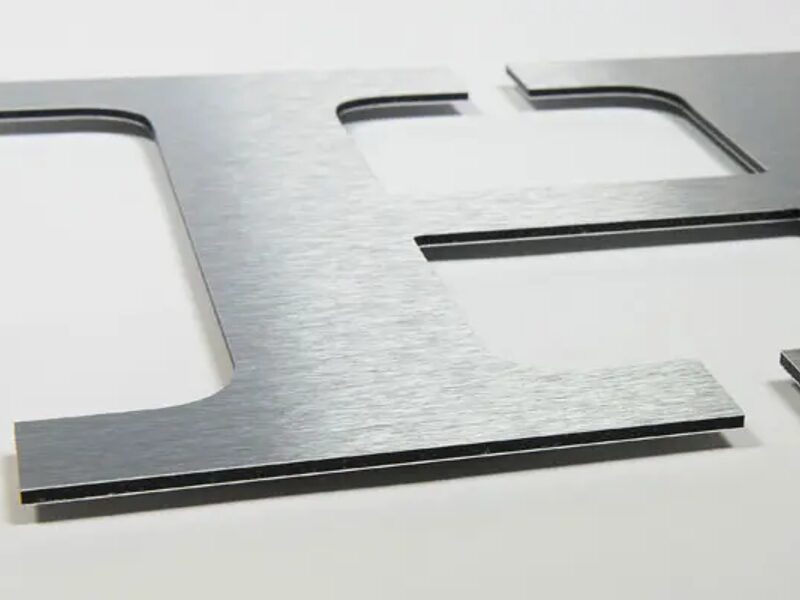

| Face finishes | Natural white, painted (any RAL or Pantone), brushed gold, brushed silver, matte black |
| Mounting options | Stud pins, VHB adhesive tape, threaded stand-off rods |
| Production time | 5–7 business days to dispatch |
| Outdoor lifespan | 5–7 years with a painted finish |
| Delivery | Flat $40 Australia-wide, or free Botany NSW pickup |
Platinum Signs manufactures every letter on site in Sydney. Keeping production in-house means shorter lead times, direct quality control, and the ability to colour-match against paint samples, substrate swatches or installed reference signs. It also means we can offer true same-state dispatch for metro Sydney, Melbourne and Canberra orders when required — a flexibility offshore-manufactured signage simply can't match.
Need help specifying a job, matching a brand colour, or sizing letters to a specific wall? Use the wall preview tool above to visualise your wording at scale, or get in touch with our signage team — we quote custom projects the same day.

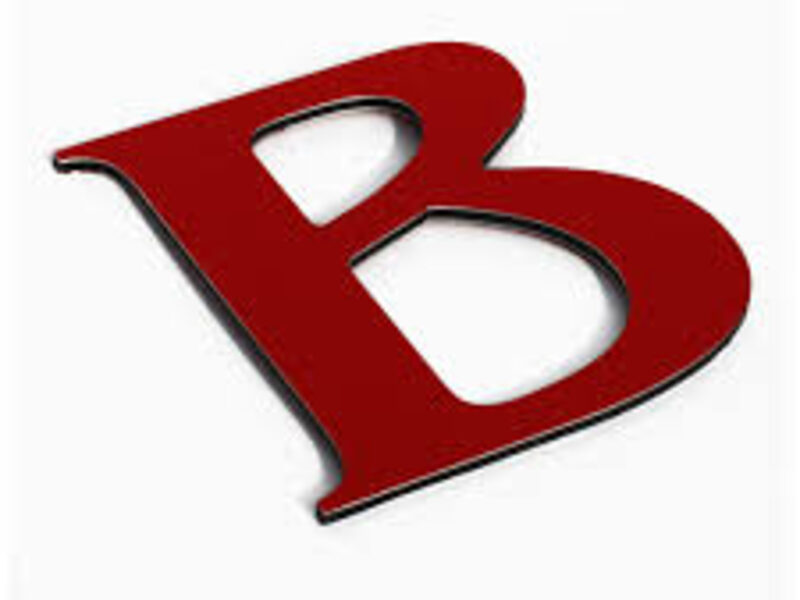

ACM (Aluminium Composite Material) letters are CNC router cut from 3mm composite panels. The lightweight yet rigid material makes ACM an excellent cost-effective option for larger letters and bold text signage. The white aluminium face provides a clean base for painting, while the black polyethylene core creates a distinctive edge profile.
